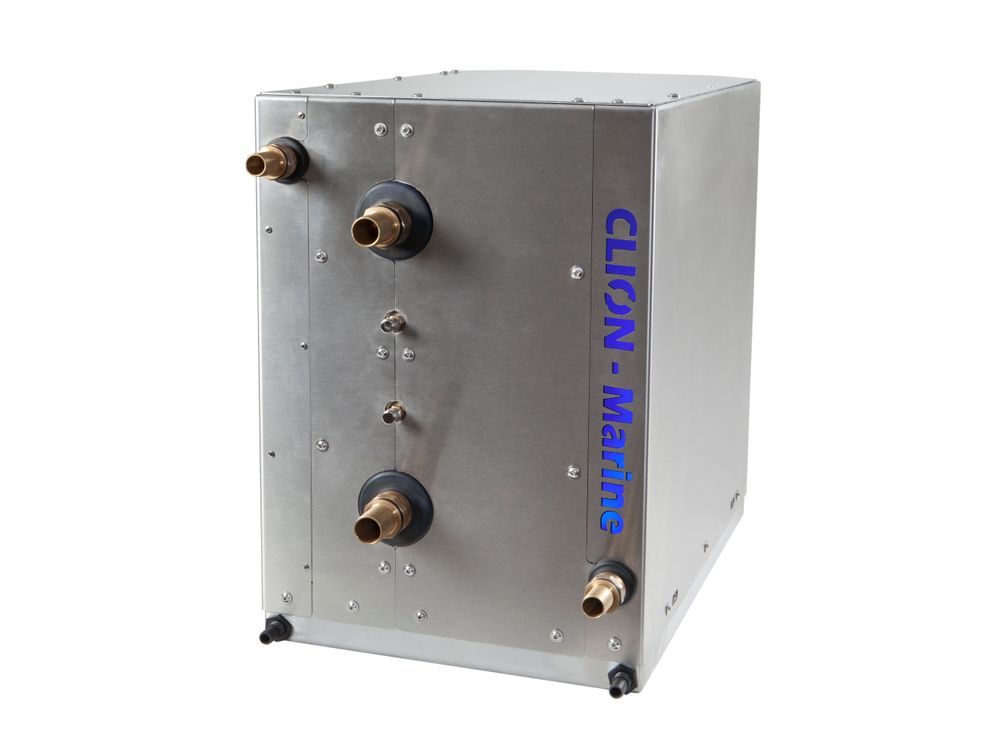

Chiller package

The Clion-Marine chiller package consists of the following items: chiller, complete prewired EMC protected control box and cable loom (0,8-1mtr), mounting kit control box (preinstalled at front of the chiller), touch screen display, Vimar black bezel, RJ45 cable 10 mtr.

Product: Clion-Marine Chiller
Model: CH-IN 51,0 CAN
Part Number: CM0000120623
Capacity (BTU/h): 16.300 – 51.500
Nominal Capacity (kW): 4,7 – 15,1
Maximum Capacity (BTU/h): 67.000
Maximum Capacity (kW): 19,5
Voltage (±10%): 200-240V / 50/60Hz / 1F
Power consumption (A): 4,18 – 13,95
Power consumption (start) (A): <2
Weight (kg): 56,00
Seawater connection: 3/4” / 19mm
Chilled water connection: 1” / 25,4mm
Dimensions (mm): 564 x 360 x 455
Control box dimensions (WxDxH): 340 x 245 x 250
Cable length control box: 0,8 m
Recommended fuse size: 25A
Drain connection (mm): 12 (4x)
Sea waterflow (m³/h): 2,52
Chilledwaterflow (m³/h): 2
Reference / Date: 120623

SPECSHEET CHILLERS
